Railroad Track Gauge Tools
Overview
Accurate measurement · Fast adjustment · Traceable records
A complete suite for track gauge inspection and alignment across mainline, industrial and mining railways. Modular, field-ready and customizable to your project needs.
Key Benefits
Measurement accuracy with traceable calibration (digital models to ±0.5 mm).
Support for standard gauges (600 / 762 / 900 / 1000 / 1435 mm) and custom ranges.
Fast on-site adjustment kits with threaded/ball-joint options for settlement compensation.
Digital logging and export (Bluetooth/USB) for QA and records.
Rugged finishes: galvanizing/stainless components for harsh environments.
Intuitive modular design — rapid training and reliable field use.
Typical Components

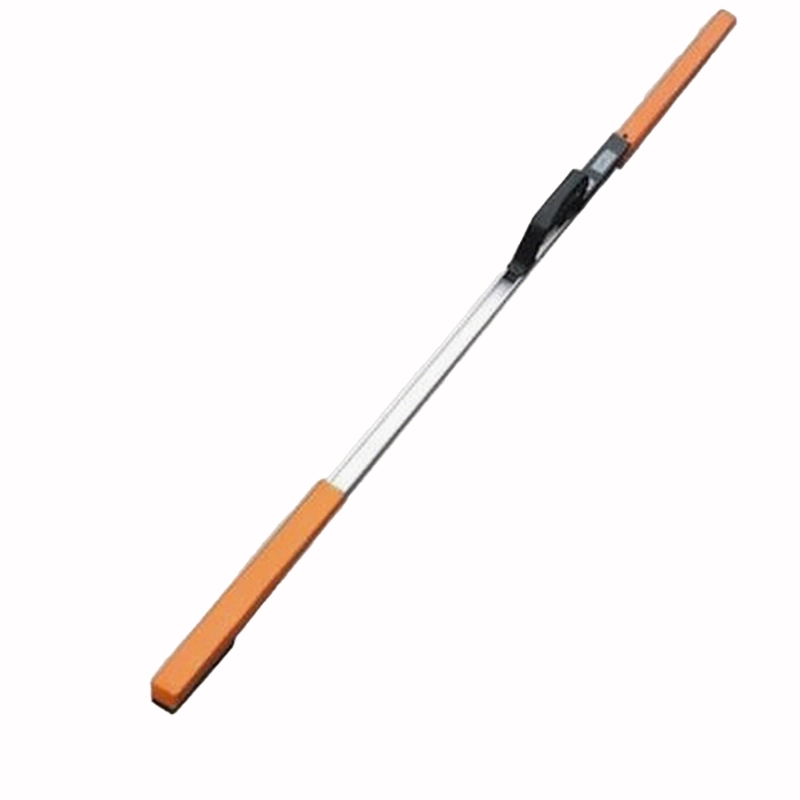

Handheld gauge for patrols and rapid checks.

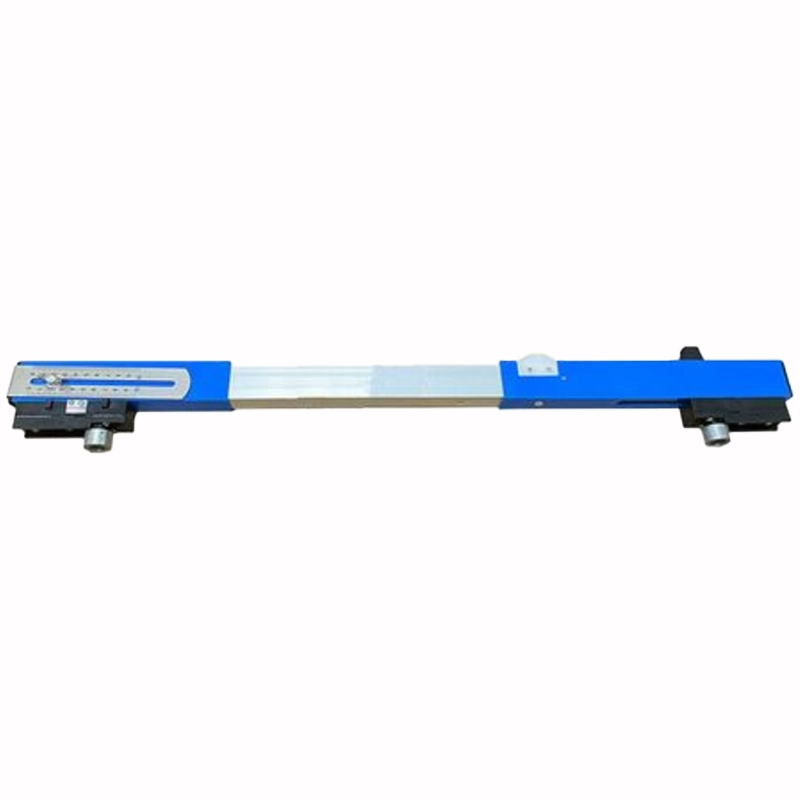

Digital gauge for precision measurement and data capture.
Adjustable gauge bar kit for setting and aligning track geometry.
Turnout alignment fixtures for switches and crossings.
Complete maintenance kit with calibration blocks and logbooks.
Technical Template
Range: customizable to project gauge requirements.
Accuracy: Mechanical ≈ ±1 mm; Digital ≈ ±0.5 mm (per calibration certificate).
Materials: weather-grade alloys, stainless steel, aluminum frames as applicable.
Protection: options for IP54 / IP65.
Interfaces: optional Bluetooth / USB for digital devices.
Typical Use Cases
Patrol & Inspection: Basic Version for rapid checks and flagging.
Construction & Acceptance: Flagship Version for precise setting, verification and reporting.
Turnouts & Switches: Customized Version for critical geometry alignment.
Ordering Guide
Please include: target gauge range, required accuracy, digital logging needed (Y/N), environment (underground/open-pit/low temp/wet), annual quantity and whether on-site training/support is required.
FAQs
Q: Battery life for digital gauge?
A: A: Typically 12–18 hours continuous use.
Q: Is explosion-proof version available?
A: Yes — we provide certified enclosures for hazardous areas (requires project info).
