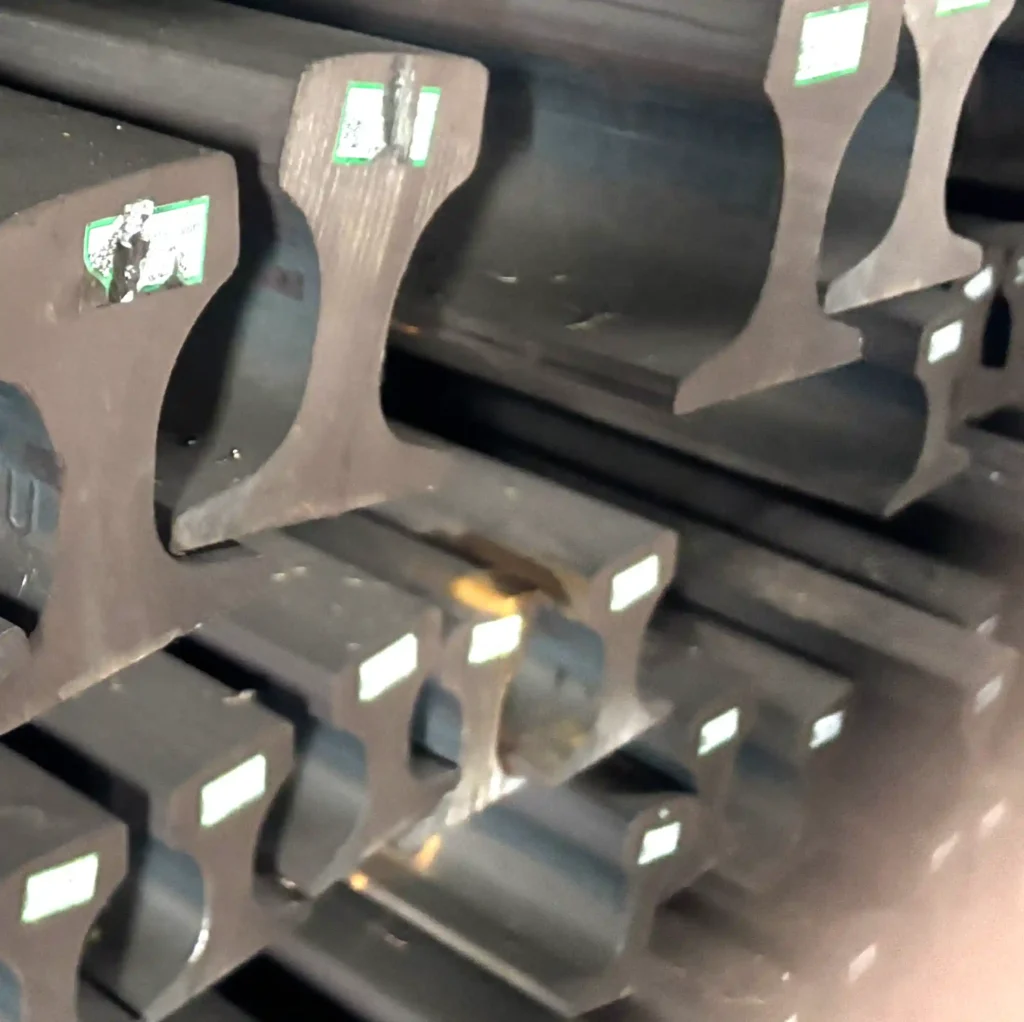

QU120 Rail
Product Overview
The QU120 rail combines an extra-wide 120 mm head, a 44 mm thickened web and a 170 mm height/base to deliver exceptional lateral and longitudinal stiffness for ultra-heavy crane service. Made in U71Mn as standard, QU120 meets YB/T5055-2014 and is ideal for ports, metallurgy, shipyards and other extreme-duty environments where wheel loads, impact and frequent cycling demand superior strength and wear resistance.
Key points
Massive load capacity: Designed for 100–400 tonne equipment and continuous high-impact heavy duty service.
Outstanding wear & fatigue resistance: Standard U71Mn ; head hardness HB 260–300 for long service life.
Exceptional structural stability: 120 mm wide head + 44 mm thickened web + 170 mm height/base for enhanced lateral and longitudinal stiffness.
Full customization & kits: Lengths 6–12 m, special machining (bevels, drilled holes, milling, surface hardening) and complete accessory packages (fishplates, bolts, rubber pads).
Stringent quality control: Hot roll → quench & temper → ultrasonic inspection → precision machining → full testing. ISO9001:2008 certified; fully compliant with YB/T5055-2014.
Core technical specifications
| Parameter | Value | Notes |
|---|---|---|
| Rail height | 170 mm | Enhances longitudinal rigidity |
| Base width | 170 mm | Wide flat base ensures stability |
| Head width | 120 mm | Expands wheel-rail contact area |
| Web (waist) thickness | 44 mm | Improves impact resistance and bending performance |
| Theoretical mass | 118.1 kg/m | Weight matches strength requirements |
| Sectional area | 150.44 cm² | Optimized for load transmission |
| Standard length | 12 m (custom 4–12 m) | Adapts to on-site layout needs |
| Standard | YB/T5055-2014 (effective 2015) | Replaces the 1993 version |
Typical applications
Port terminals: Ship-to-shore gantry cranes (STS), rubber-tyred gantry cranes (RTG), heavy bulk handling cranes — wheel loads ~600–800 kN.
Metallurgy & foundries: Ladle cranes, slab handling cranes, coke oven pushers and related rails exposed to high temperature and heavy impact.
Other heavy industries: Shipyard gantry cranes (e.g., 300 t class), mine hoisting equipment, hydro-power plant heavy equipment installation rails.
Installation & recommended practices
Fastening system: Use matched mounting components and balanced anchoring to prevent lateral movement.
Rail joining: Recommend DC reverse polarity welding. Preheat when ambient temperature < 10°C and strictly control weld quality.
Precision requirements: Gauge tolerance ≤ ±3 mm; flatness ≤ 1 mm per 2 m to ensure smooth crane operation.
Customization & accessory options
Lengths: Custom from 6 m to 12 m.
Material upgrade: U75V for extreme wear/high-temperature service.
Special machining: 45° bevel cuts, drilled holes, milling, surface hardening (induction/quench) per drawing.
Accessory packages: Fishplates, bolts & nuts, rubber pads, dedicated fixing kits — single-source supply.
Engineering support: CAD drawings, welding & installation guidance, on-site technical support (available per contract).
Quality assurance & testing
Controlled manufacturing: Hot rolling → quench & temper → ultrasonic flaw detection → precision machining → full testing.
Certifications: ISO9001:2008; production and testing to YB/T5055-2014.
Testing scope: Dimensional accuracy, chemical analysis, mechanical properties, internal defect inspection, surface quality.
Third-party inspection: Independent test reports available on request.
Delivery, warranty & after-sales
Samples / trial: Samples and site test sections available upon request (terms apply).
Lead time: State lead time in the quotation based on order quantity and machining requirements.
Warranty: Product quality warranty with technical support for defects; specific warranty period and remedies should be defined in the sales contract.
Spare & service: Spare accessory kits and wear replacement rails available for planned maintenance.
